Universal Laser Systems, Inc. (ULS) is a recognized global innovation leader in DLMP® (Digital Laser Material Processing) technology. For nearly 30 years, organizations worldwide in all types of environments have discovered and leveraged the benefits of our technology to help them achieve their goals. Learn how ULS can help you achieve yours.
Signa Digital Solutions has partnered with ULS for 10+ years to be a reliable dealer and service provider, covering Southern California including Tijuana and Mexicali. Our customers can speak to the satisfaction of the products and services. Feel free to stop by and see the product on our demo floor.
For product details and availability, contact our sales team at [email protected]
1
Multi-Material
Ideal for 1000s of materials
Multi-Process
Non-Contact
High Repeatability
Instant Setup
Universal Laser Systems – Ultra R5000
- Material Processing Envelope: 32 x 24 in (813 x 610 mm), with support for materials with a thickness up to 12 in (305 mm)
- Max Lasers Supported: 2 (2x CO2 Laser, or 1x CO2 Laser and 1 x Fiber laser)
- Wavelengths Supported: 10.6µm (CO2) , 9.3µm (CO2) and 1.06 μm (Fiber)
- Max Laser Power: 150 Watts (CO2) and 50 Watts (Fiber)

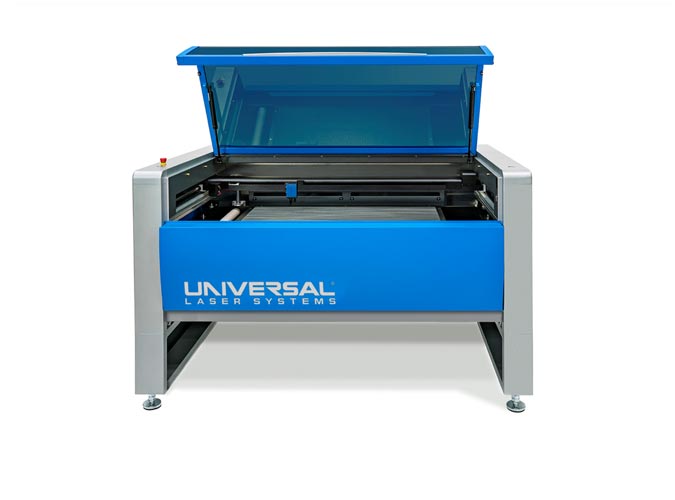

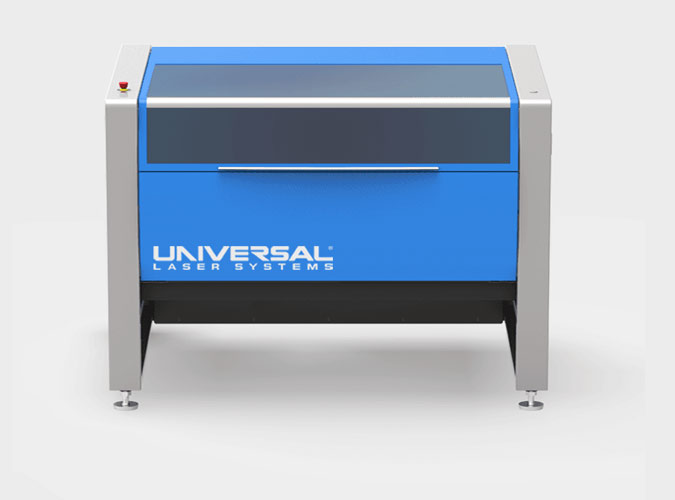

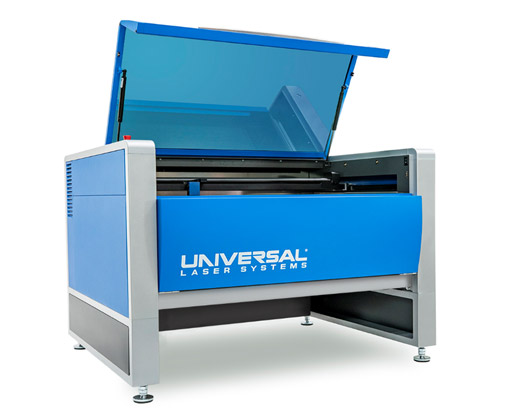

Universal Laser Systems – Ultra R9000
- Material Processing Envelope:48 x 24 in (1219 x 610 mm), with support for materials with a thickness up to 12 in (305 mm)
- Max Lasers Supported: 2 – (2 x CO2 Laser or 1 x CO2 Laser and 1 x Fiber Laser)
- Wavelengths Supported: 10.6µm (CO2) , 9.3µm (CO2) and 1.06 μm (Fiber)
- Max Laser Power: 300 Watts (CO2) , 50 Watts (Fiber)

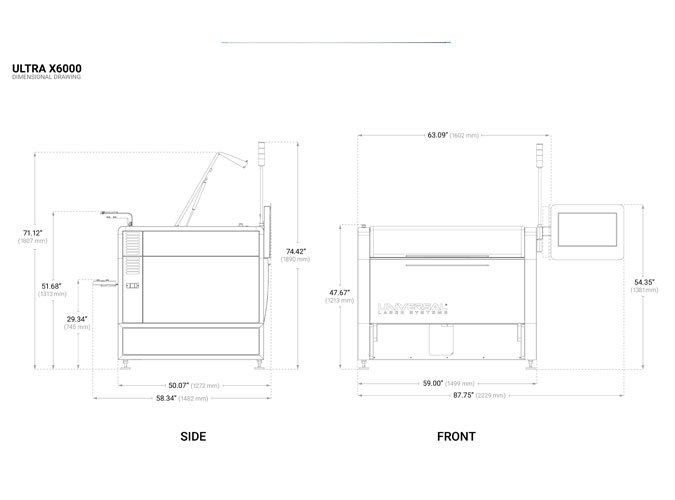

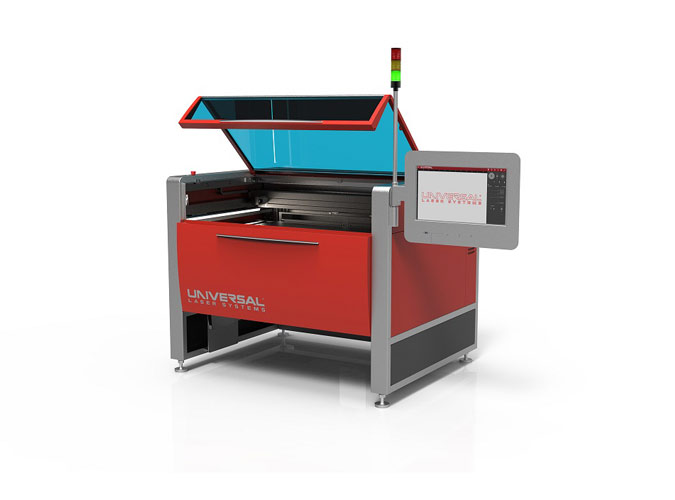

Universal Laser Systems – Ultra X6000
- Material Processing Envelope: 36 x 24 in (914 x 610 mm), with support for materials with a thickness up to 12 in (305 mm)
- Max Lasers Supported: 3 – (2 x CO2 Laser and 1 x Fiber Laser)
- Wavelengths Supported: 10.6µm (CO2) , 9.3µm (CO2) and 1.06 μm (Fiber)
- Max Laser Power: 300 Watts (CO2) , 50 Watts (Fiber)

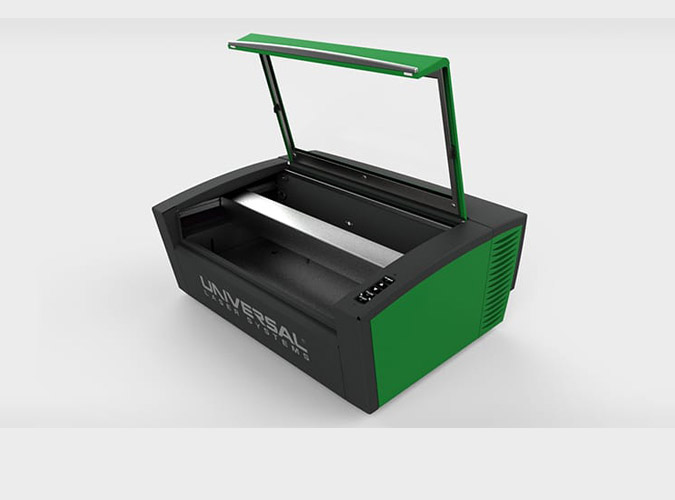

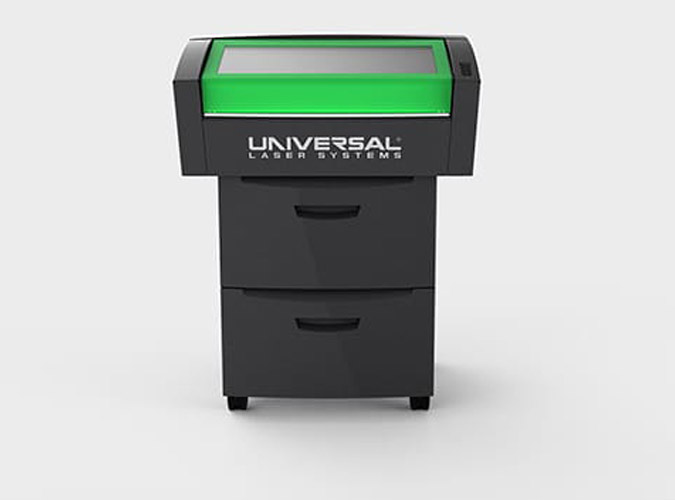

Universal Laser Systems – VLS3.60DT
- Material Processing Envelope: 24″ x 12″ x 4″ or 1,152 in³ (610 x 305 x 102 mm or 18,878 cm³)
- Max Lasers Supported: 1 – CO2 Laser
- Wavelengths Supported : 10.6µm (CO2) and 9.3µm (CO2)
- Max Laser Power: 60 Watts (CO2)
Universal Laser Systems – VLS4.75
- Material Processing Envelope:24″ x 18″ x 8.5″ or 3,672 in³ (610 x 457 x 216 mm or 60,214 cm³)
- Max Lasers Supported: 1 – CO2 Laser
- Wavelengths Supported: 110.6µm (CO2) and 9.3µm (CO2)
- Max Laser Power: 75 Watts (CO2)(CO2)

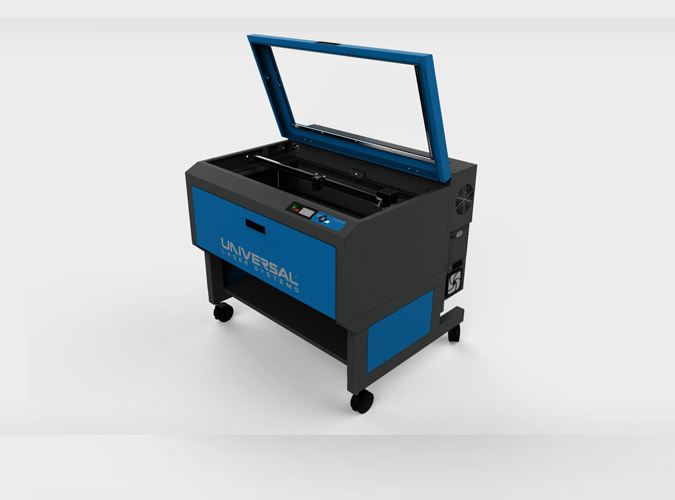

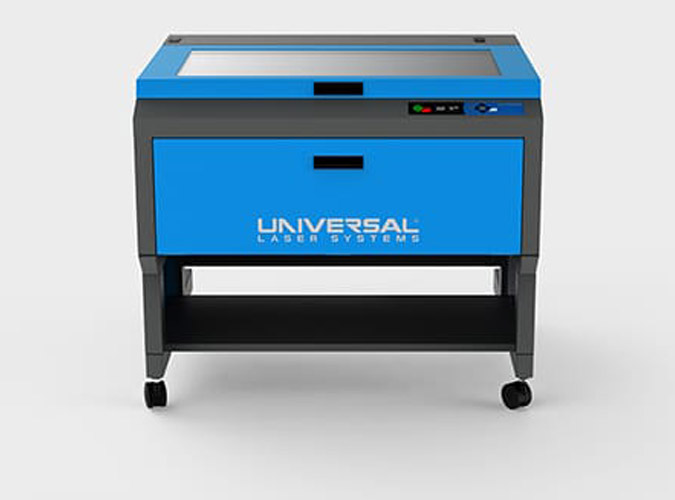

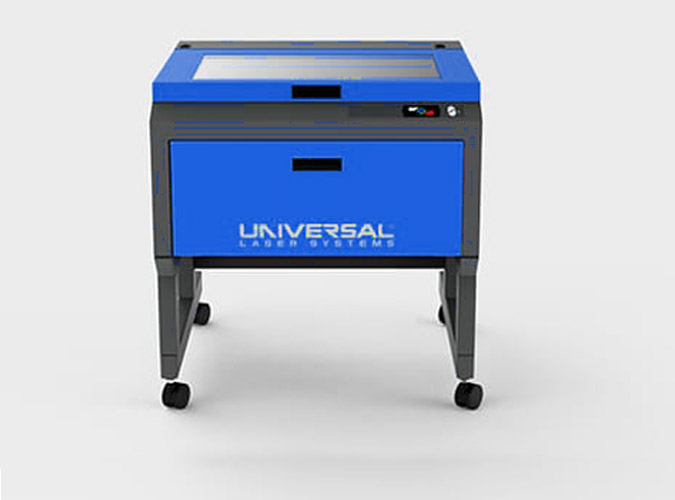

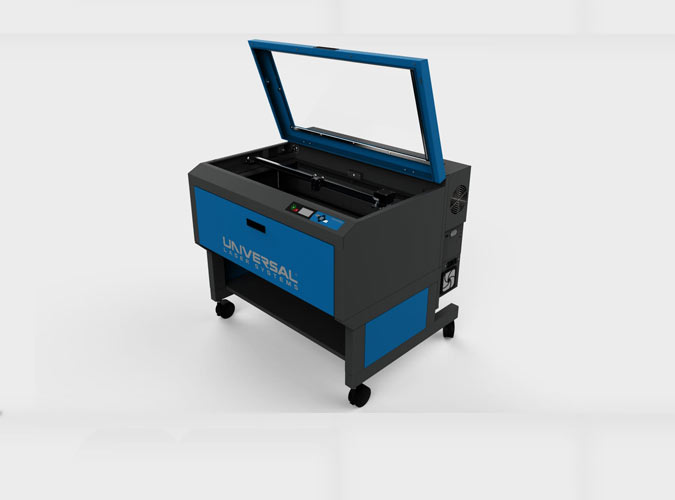

Universal Laser Systems – PLS6.150D
- Material Processing Envelope: 32″ x 18″ x 8.5″ or 4,896 in³ (813 x 457 x 216 mm or 80,253 cm³)
- Max Lasers Supported: 2 x CO2 Laser
- Wavelengths Supported: 10.6µm (CO2) and 9.3µm (CO2)
- Max Laser Power: 150 Watts (CO2)
